Road Reimagined
Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with Synapse – our most comfortable, all-around, up-for-anything, pure road machine.
Where it thrives
The open road, up & down hills, rough pavement
What it's built for
Comfort, handling, going long
Highlights
- Lightweight Synapse Carbon Frameset / Full SmartSense system with radar and lights
- Shimano GRX 800 Di2, 11-speed electronic group with hydraulic disc brakes
- HollowGram 45 KNØT carbon wheelset / HollowGram SAVE SystemBar
Specs
Details
- Platform

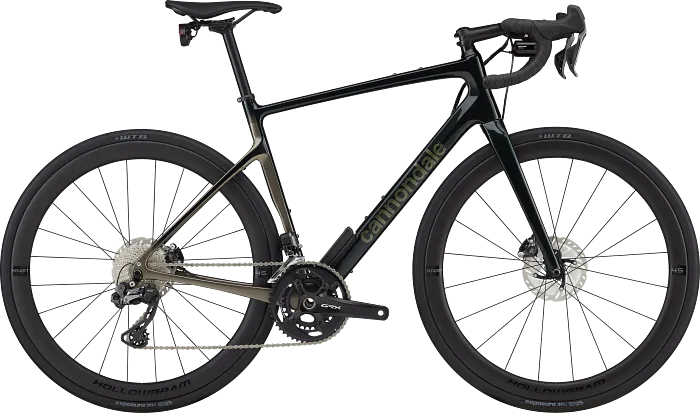

- Model NameSynapse Carbon LTD RLE
- Model CodeC12151U
Frameset
- FrameSynapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru-axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
- ForkSynapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
- HeadsetSynapse Sealed Bearing, integrated, 1-1/4"-1-1/8"
Drivetrain
- Rear DerailleurShimano GRX 815, Di2, Shadow RD
- Front DerailleurShimano GRX 815, Di2, braze-on
- ShiftersShimano GRX 800 hydraulic disc, 11-speed
- ChainShimano HG701, 11-speed
- CrankShimano GRX 810, BSA, 48/31
- Rear CogsShimano Ultegra HG800, 11-34, 11-speed
- Bottom BracketShimano R60 BSA
Brakes
- BrakesShimano GRX 800 hydraulic disc, 160/160mm RT800 rotors
- Brake LeversShimano GRX 800 hydraulic disc
Wheels
- RimsHollowGram 45 KNØT, Carbon, 20h front, 24h rear, 45mm deep, 21mm IW, tubeless ready
- SpokesFormula Grand Forza, straight-pull
- TiresWTB Exposure TCS, 700 x 30c, Distance compound, tubeless ready
- Tire Size30
- Wheel Size700c
- Hubs(F) HollowGram KNØT, sealed bearing 12x100mm centerlock / (R) HollowGram KNØT, 12x142mm centerlock w/ DT Swiss internals
- Front TireWTB Exposure TCS, 700 x 30c, Distance compound, tubeless ready
- Rear TireWTB Exposure TCS, 700 x 30c, Distance compound, tubeless ready
Components
- HandlebarHollowGram SAVE SystemBar, Carbon, 8 deg. pitch adjust
- StemHollowGram SAVE, Alloy, -6°
- GripsFabric Knurl Bar Tape
- SaddleFizik Tempo Argo R5, 150mm width, S-alloy rails
- SeatpostHollowGram SAVE Carbon SmartSense, 27.2 x 350mm (48-56), 400mm (58-61)
Connectivity
- Wheel SensorCannondale Wheel Sensor
Extra
- Extra 1SmartSense with Lights and Radar, Trainer-compatible thru-axle
