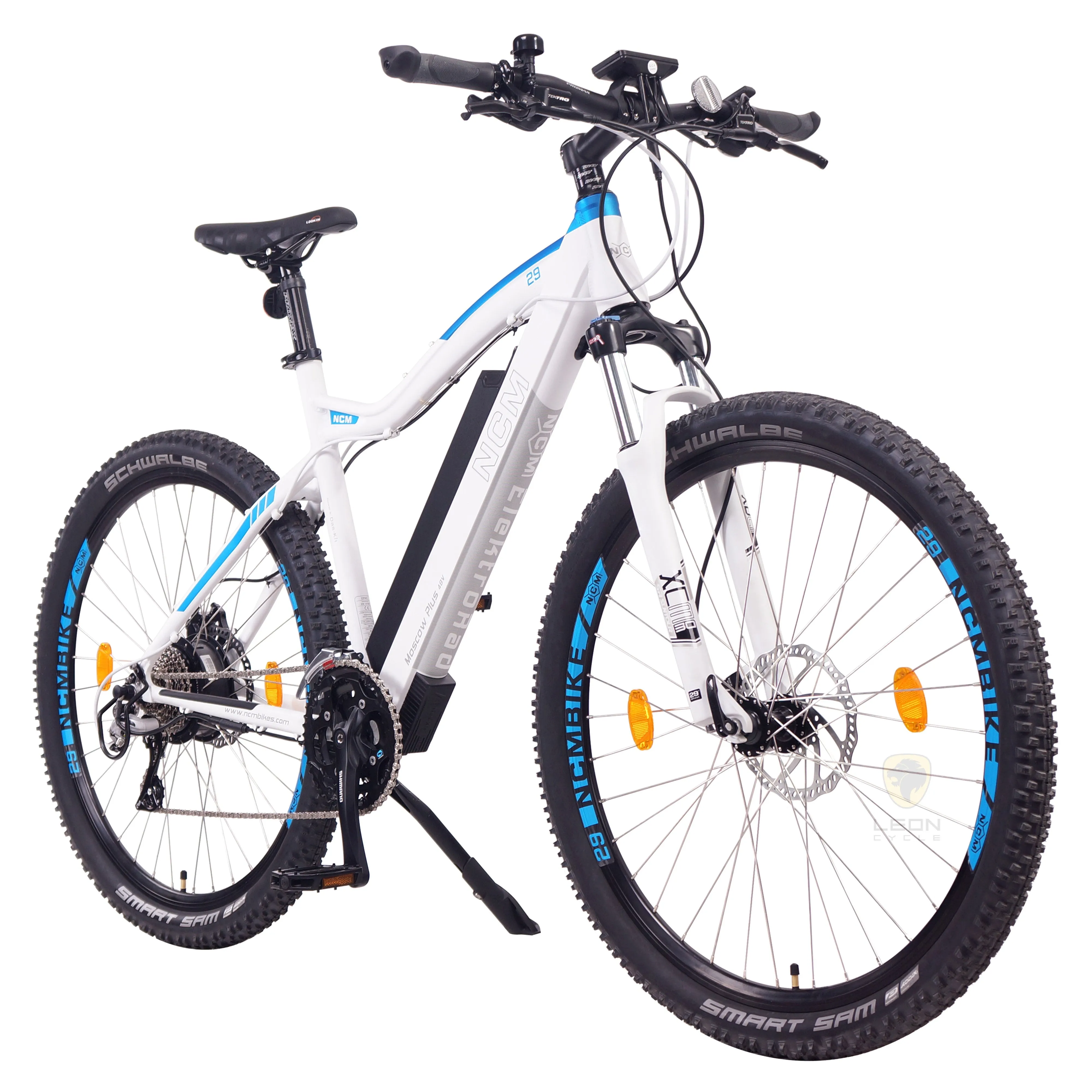

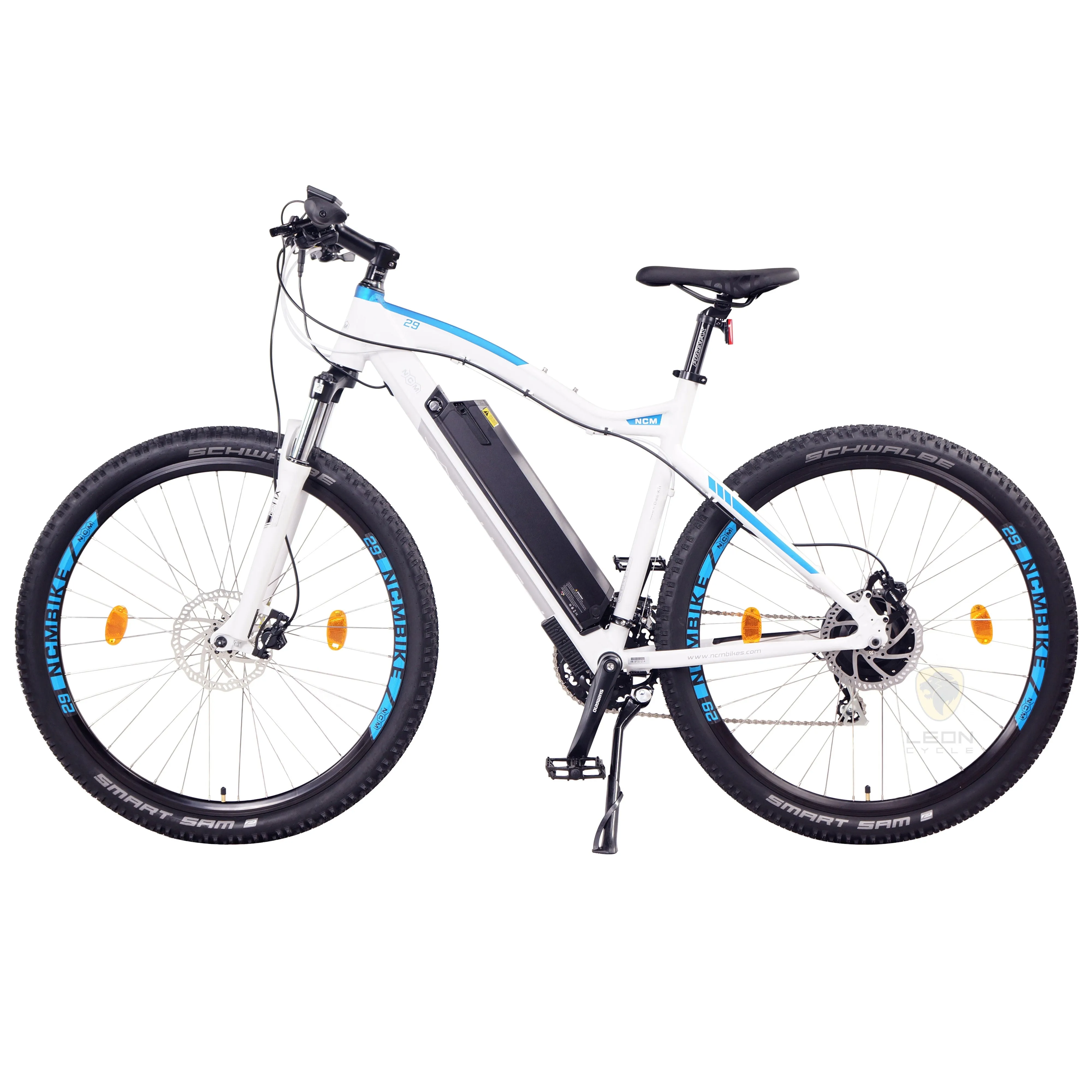

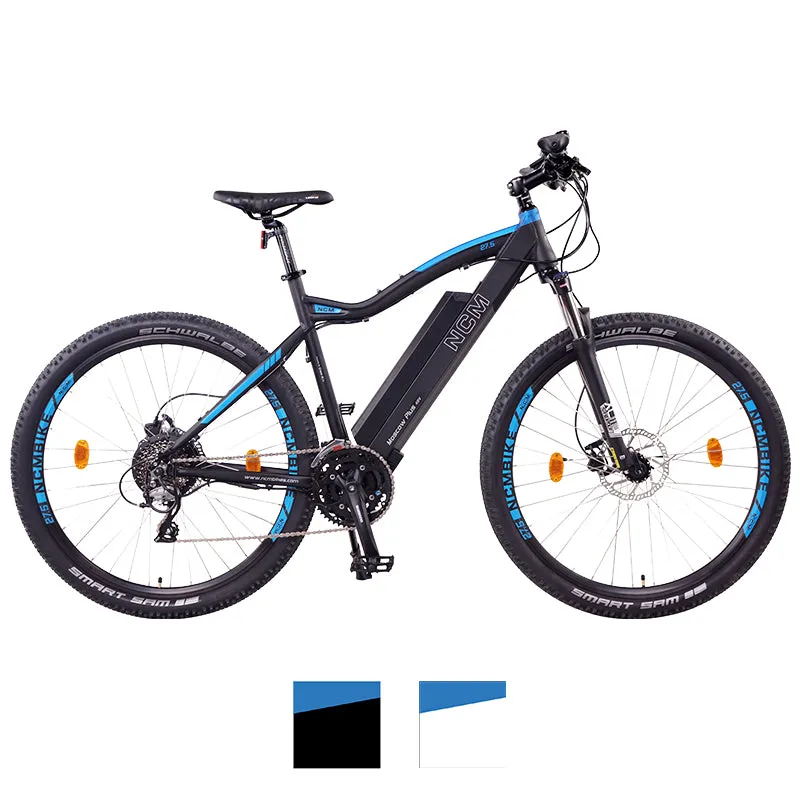

An e-mountain bike equipped with high-end brake and drive systems, the NCM M5 is for adventurous riders who want to hit the trails comfortably in the knowledge that their ebike can handle whatever they throw at it.
Introduction
Key Features
- Ergonomic bicycle Grips
- Comfortable sitting posture
- All important controls easily accessible
- Supplied with 48V to deliver a high output power
- Over 768Wh capacity for a longer distance
- Reach up to 150 km (depending on terrain conditions & power level settings)
- Battery integrated in the frame for better aesthetics
- Easily removable battery so you can charge it anywhere
- A built-in USB port with 5V to charge mobile phones
- Equipped with Throttle and Pedal assist.
BIKE COMPONENTS

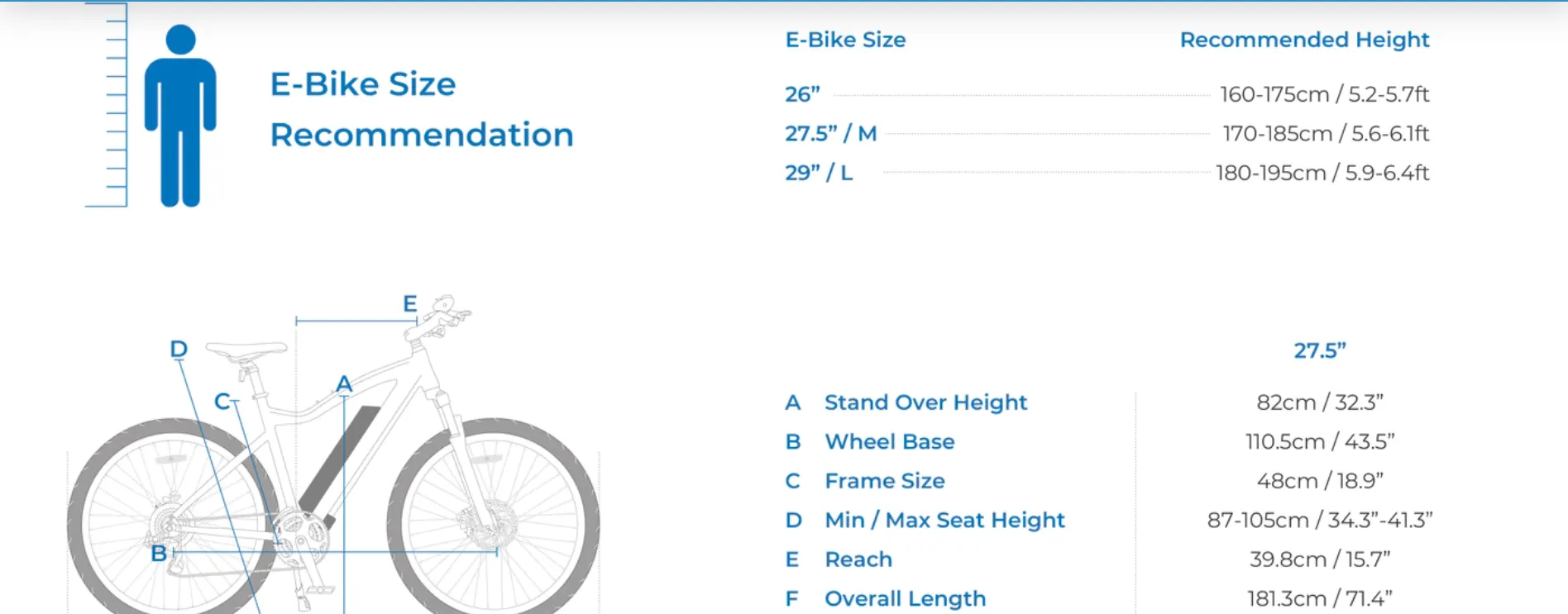

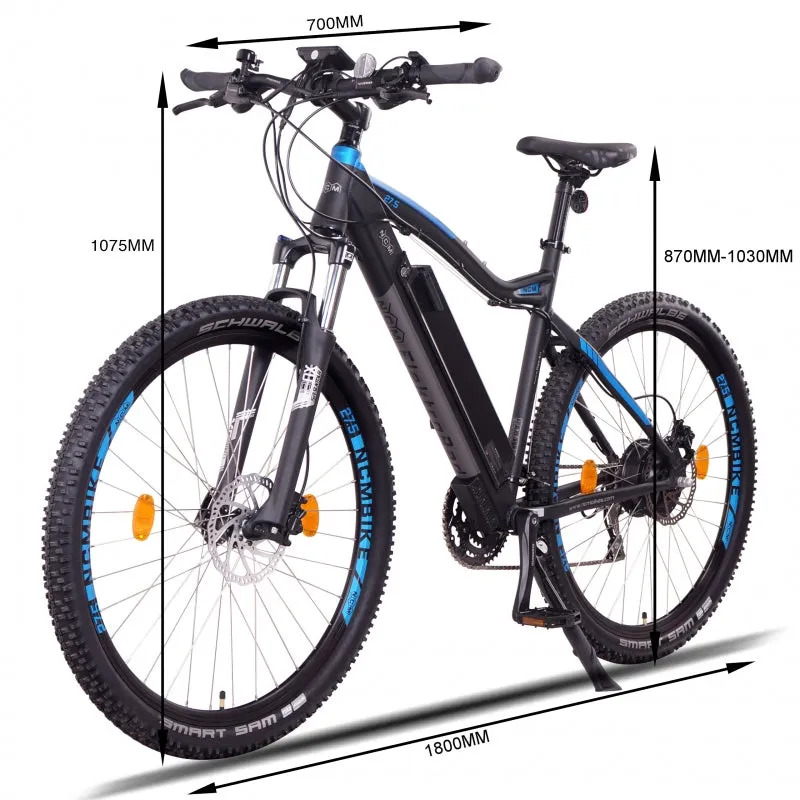

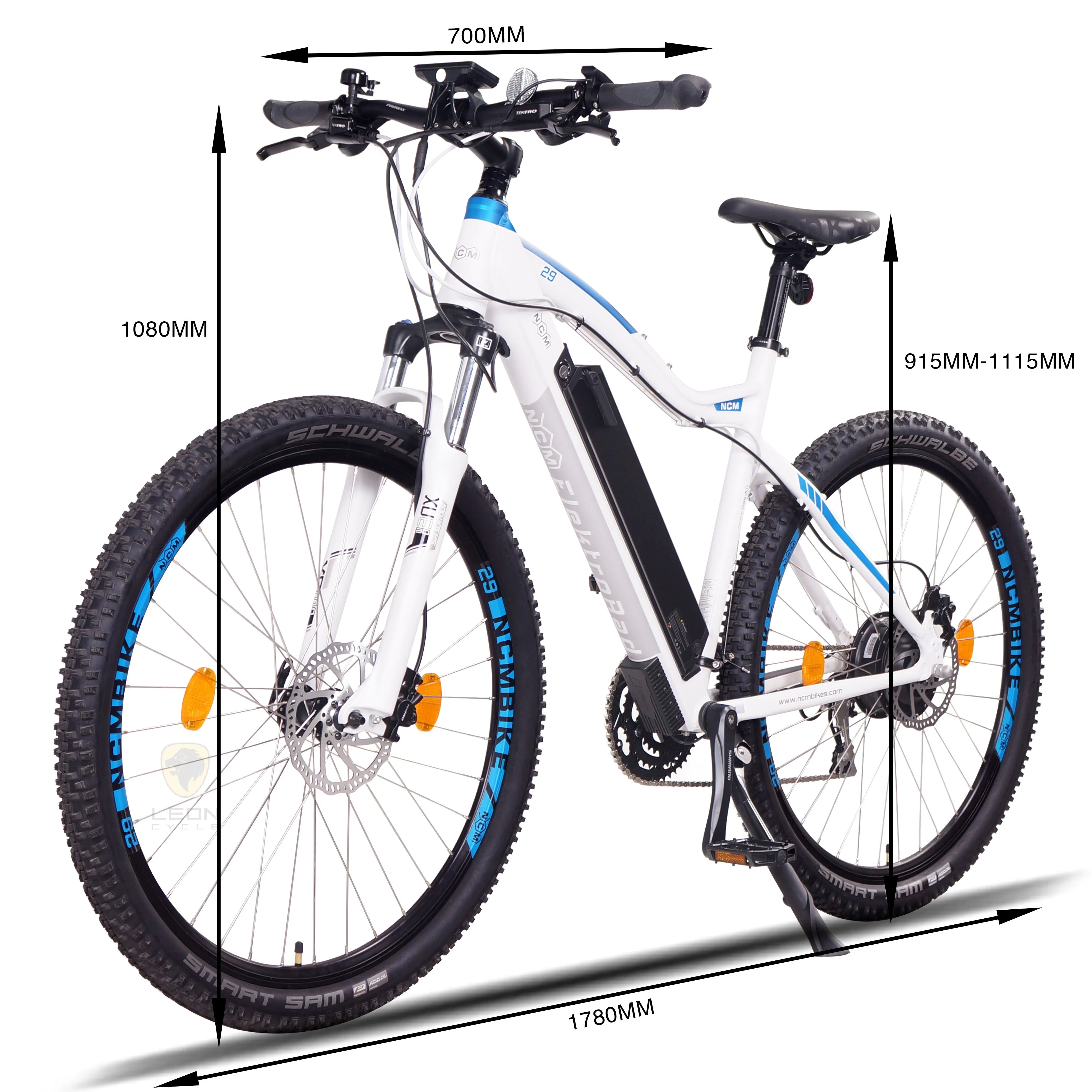

Frame: Alu. 6061, 26"*17.3 inches / Alu. 6061, 27.5"*18.9 inches / Alu. 6061, 29"*20.5 inches
Suspension Fork: Suntour, XCM-HLO-26/27.5/29, with hydraulic lock system
Brake: F/R: Tektro Hydraulic Disc Brakes,HD-E350

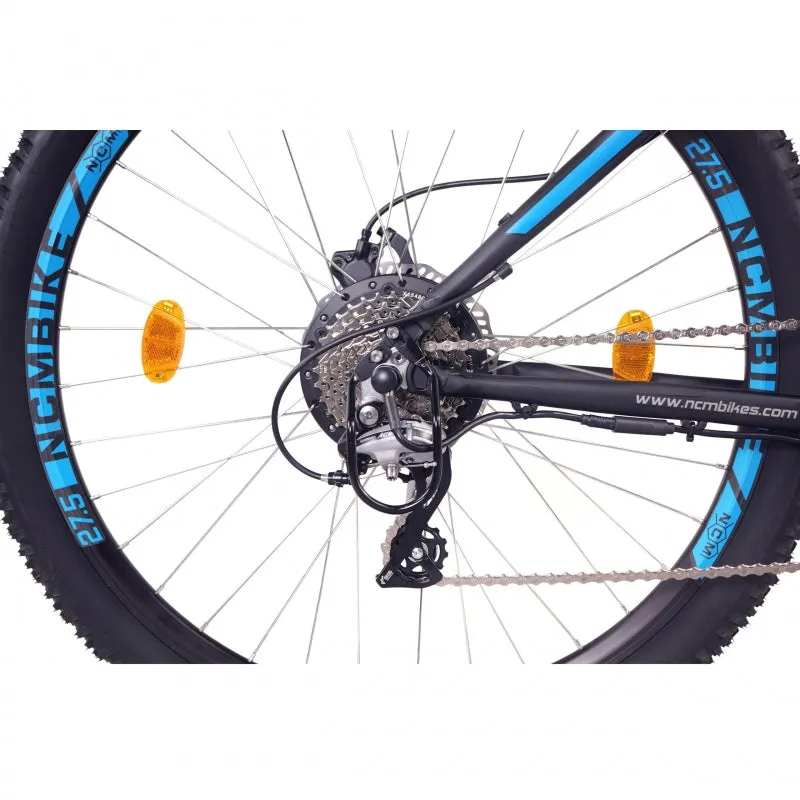

Freewheel: LY, 8 Speed, 11-32T, Silver
Tire: Schwalbe, Black Jack, 26"*2.1/Smart Sam, 27.5"*2.35/29"*2.35, Black
Saddle: Selle Royal, Lookin-A200UR, Black
Crank: Das-Kit, CM48,28/38/48T

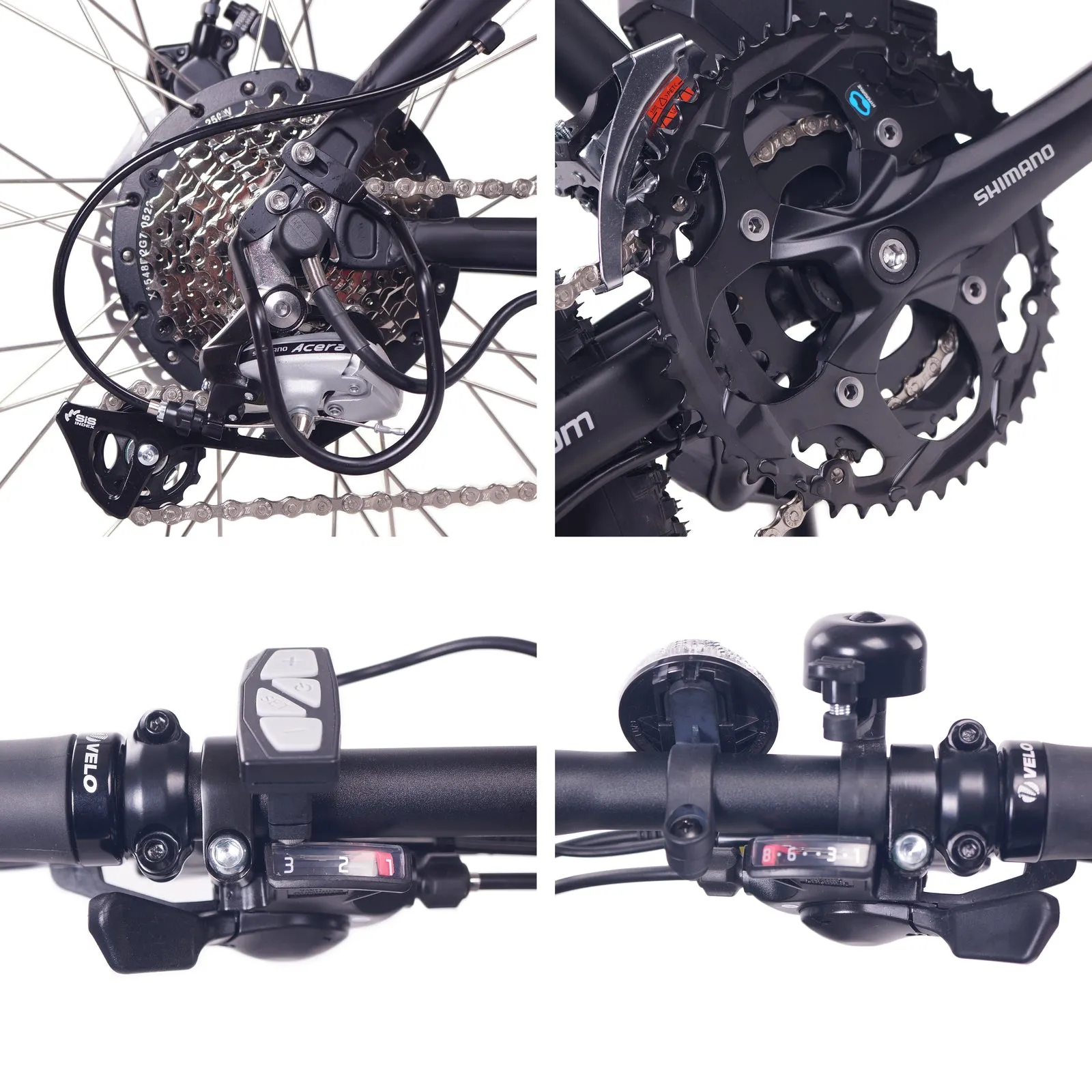

Derailleur: F: Shimano, Altus, FD-M310, R: Shimano, Acera, RD-M360
ELECTRIC COMPONENTS
Battery: Das-Kit, i5-4816, 48V 16AH, 768WH

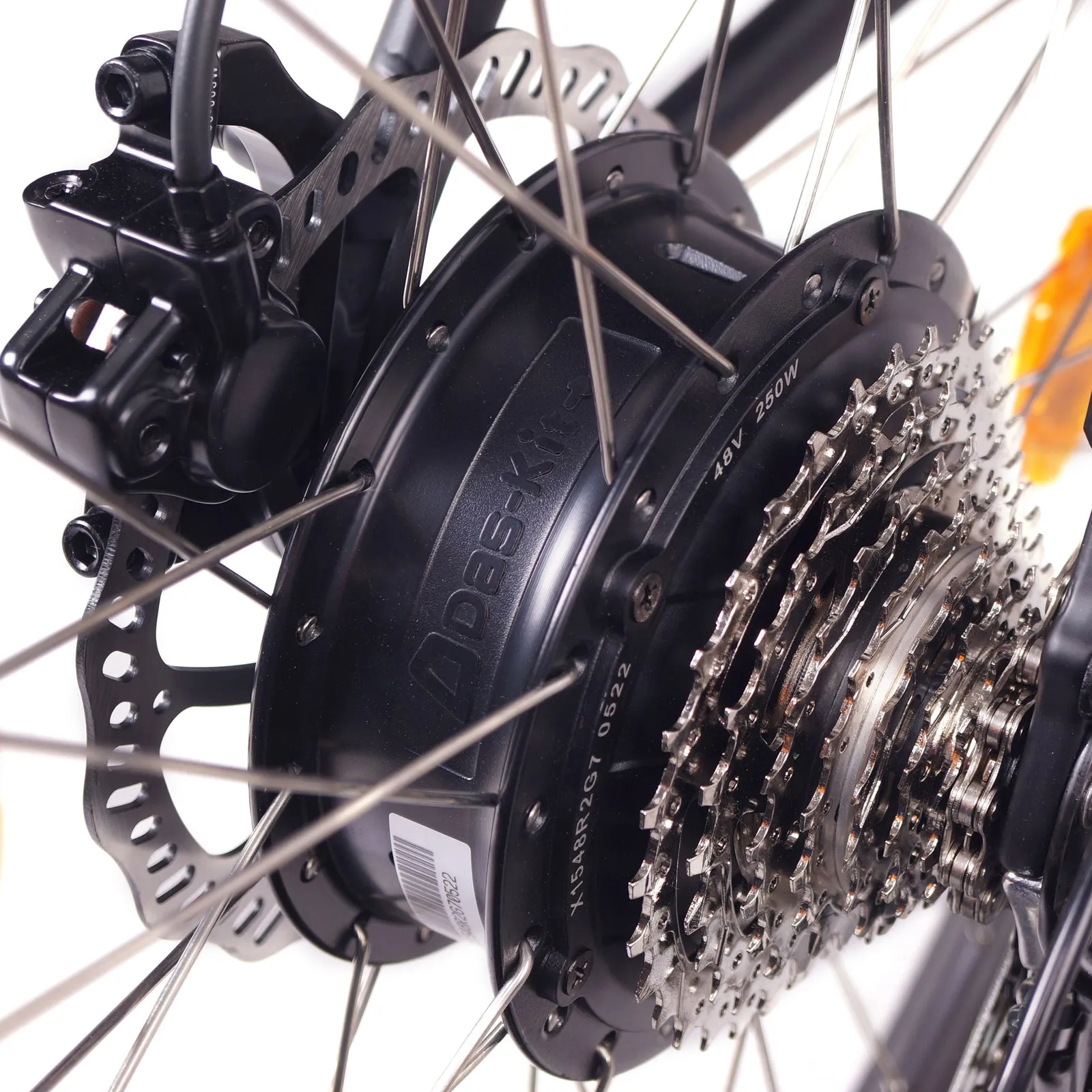

Hub Motor Rated / Peak Power: Das-Kit, X15, 48V 250wh
Controller: Das-Kit, CT-i5, 48V 16amp

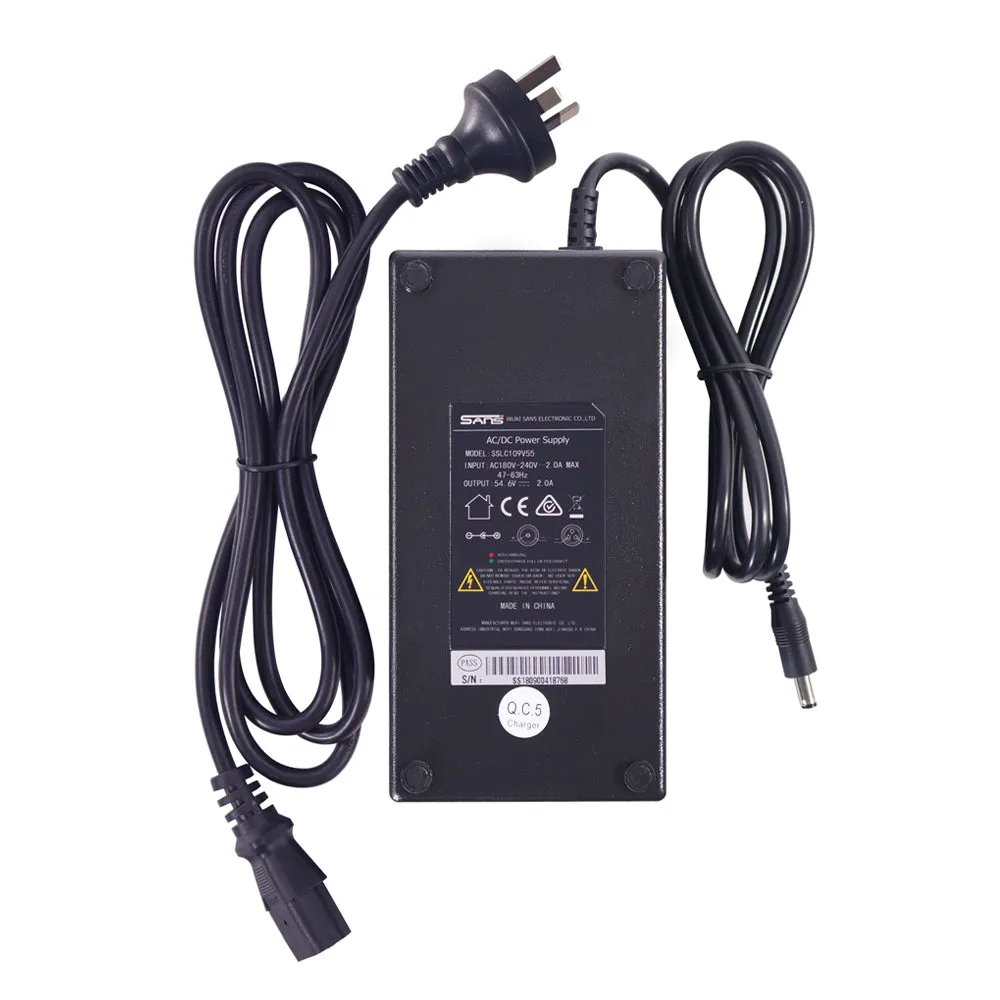

Charger: Das-Kit, 48V3A

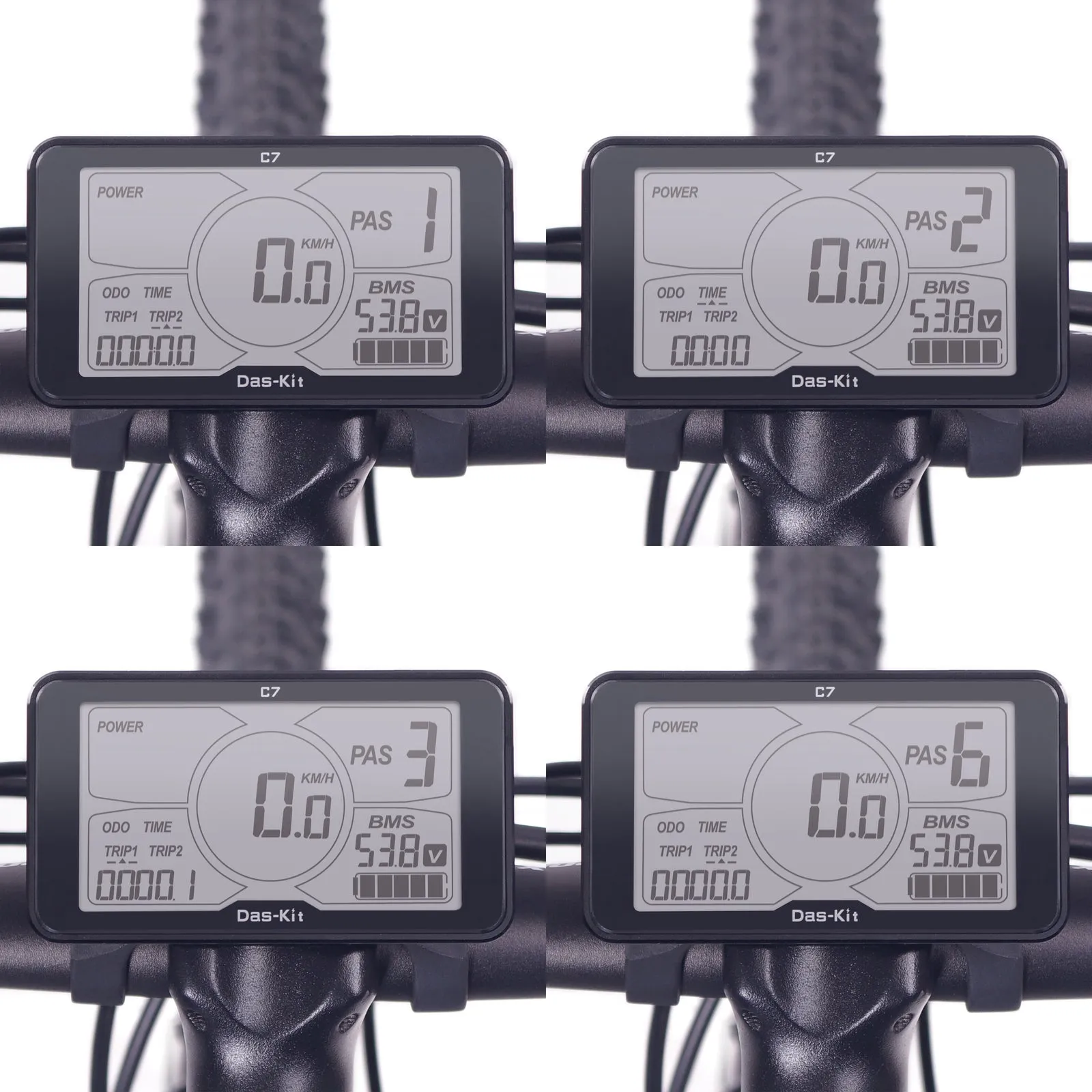

Display: Das-Kit, C7
WEIGHT
Net Weight (with battery): 57.0 lbs
Battery Weight: 9.1 lbs
Max Load (driver bike): 275.0 lbs
Warranty
- 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
- 2 year warranty on the bike frame
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
- Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
