A DOWNHILL BIKE THAT GOES EVERYWHERE
Seriously. The Megatower’s big wheels, long-travel and tough carbon fiber chassis delivers the high-speed security traits of a downhill bike. Yet the relatively steep seat angle and size-specific geo maintain the Mega’s mega pedaling ability, elevating its reputation as the perfect choice for big gravity rides and DH park laps.

Glovebox
Place everything you need for a ride beneath the reassuringly high-quality latch and panel in the downtube, including your driving gloves. The Glovebox also comes with a Tool Wallet and Tube Purse, two refined pouches for keeping your essentials close to hand.

Full carbon C and CC frame options
While both versions of our carbon frames are made in our own factory, are just as strong and stiff as one another, and have a lifetime warranty, there are a couple of differences between the two. CC frames use the very best materials and production processes available, while our C frames add on a little more weight for a little less $.

Steeper seat tube angle
The steep seat tube angle puts you in the right place to scale the steepest pitches to get to the wildest descents. Even better, it gets progressively steeper as the sizes get larger so everyone sits in the right spot.

165mm of VPP™ travel
A relatively-low leverage ratio not only makes setup easier but delivers a more damped, controlled feel across the travel range.

Coil and water compatibility
Even with a lower-link flip chip and the option to run large-body shocks, like a coil, you’re still able to fit a water bottle inside the front triangle.

Longer travel?
165mm of travel comes standard, but if you choose to run a shock with a longer, 65mm stroke, you can bump it up to 170mm.

Details matter
The frame details are completed with a neat mud flap that protects the rear shock, a rubberized downtube protector that shrugs off strikes, and tidy cable routing within the frame and swingarm.

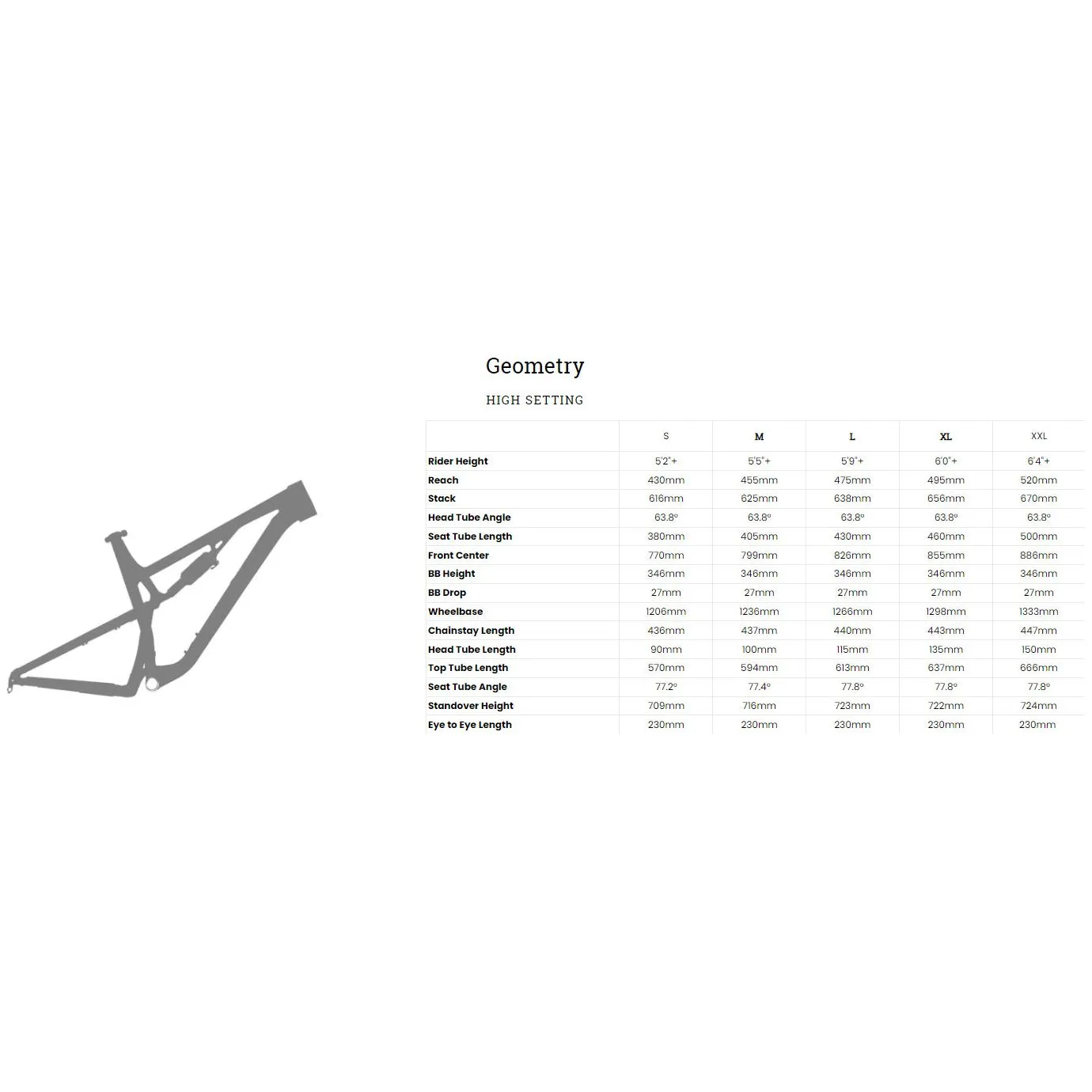

Proportional geo
The Megatower's chainstay length is matched to the frame size so every rider, no matter their height, gets the same balanced geometry.

• Fork Travel : 170mm
• Fork Compatibility : 170mm-180mm
• Frame Travel : 165mm
• Shock Size : 230x62.5
• ICSG-05 Tabs : Yes
• Brake Mounts : 200mm PM
• Headset : Integrated (IS41/52)
• Seatpost Diameter : 31.6mm
• Seat Clamp Diameter : 36.4mm
• BB Shell : 73mm Threaded
• Max Tyre Size : 2.5"
• Max Chaingring Size : 36t
• Shock Mounting Bushing Front : 30x8
• Shock Mounting Bushing Rear : 30x8
• Derailleur Hanger : Santa Cruz (SRAM) UDH

• Megatower 2 Carbon C Frame
• FOX 38 Float Performance, 170mm
• RockShox Super Deluxe Select
• SRAM GX Eagle, 12spd
• SRAM Code R Hydraulic Disc Brakes
• OneUp V2 Dropper Post, 31.6 or RockShox Reverb, 31.6 (depending on availability)
• RaceFace AR Rims & DT Swiss 370 Hubs
